General Scudu 2.0 Alternator belt help

[martin1962]

Hi help needed i have a 2001 2.0jtd and the belt snapped but no matter how i try to put on new on its to slack and i have search the net for pix of belt direction there is nothing so if someone has a pic or can draw it for me i would be extremely grateful



[bencey]

Hi there.
i came across this in another post. not 100% sure it applies to your engine though.
hope it helps though
https://www.fiatforum.com/gallery/data/2312/diesel-alternator-1.jpg



[martin1962]

Hi thanks for that but thats a different engine mine has just 1 belt driving everything .



[Andycabs]

Try looking at an Ebay listing "Fiat Scudo 2.0 Jtd 2000 - 2007 Timing Belt Kit And Water Pump Gates" seller "allcars-online" There is a picture of the belt around the pulleys there...might be the one?



[r masters]

go to page 30 aux belt tensioner diagram on there



[martin1962]

Re: Scudo 2.0 Alternator belt help

Many tx that was just what i was looking for you think it would be in the manual that comes with the van stupid really



[Andycabs]

go to page 30 aux belt tensioner diagram on there

Page 30? where?



[r masters]

page 30 on this forum



[bigdong]

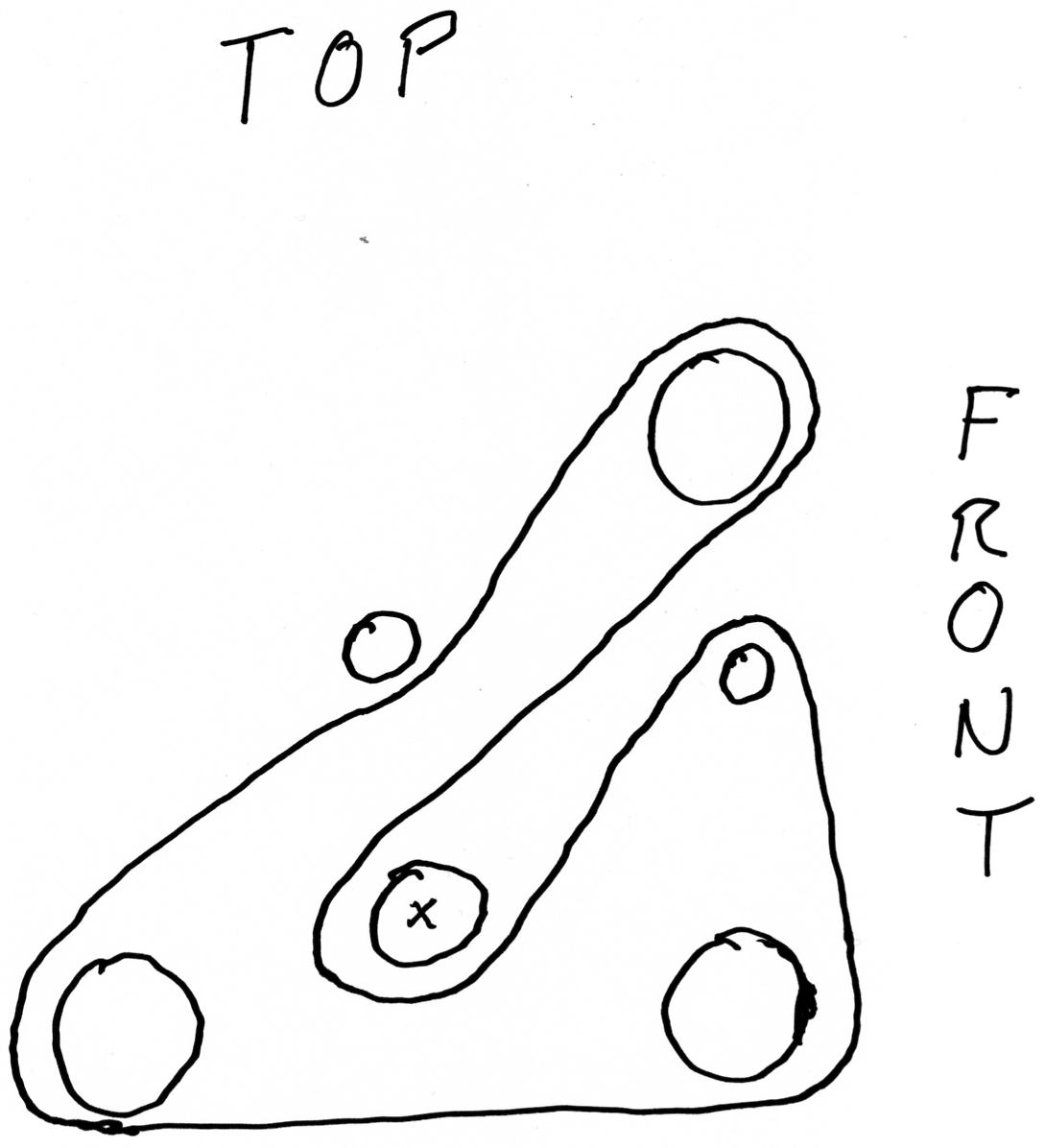

This diagram is for scudo 96/07 2.0 jtd with power steering, the pully marked with the x is the tensioner, put a spanner on this pully and simply pull back against the tension, place belt in place and release.

Brought forward from p30



[Andycabs]

page 30 on this forum

I think I must be dense over the hill and past it. I can see no way to goto page 30 on this forum...or any other page number???



[bigdong]

I think I must be dense over the hill and past it. I can see no way to goto page 30 on this forum...or any other page number???

Go back to scudo menu, "the page that shows all the latest posts" at the top right of the page you will see "page 1,2,3,>,11,last." work up the page numbers from there. Hope this helps



[Andycabs]

Go back to scudo menu, "the page that shows all the latest posts" at the top right of the page you will see "page 1,2,3,>,11,last." work up the page numbers from there. Hope this helps

:doh:



[Zog]

Anything wrong with posting the URL? The page number will change over time...

https://www.fiatforum.com/scudo/223265-aux-belt-tensioner.html
