Technical Strada 1.5 rhd fuel system

[Spwrsa]

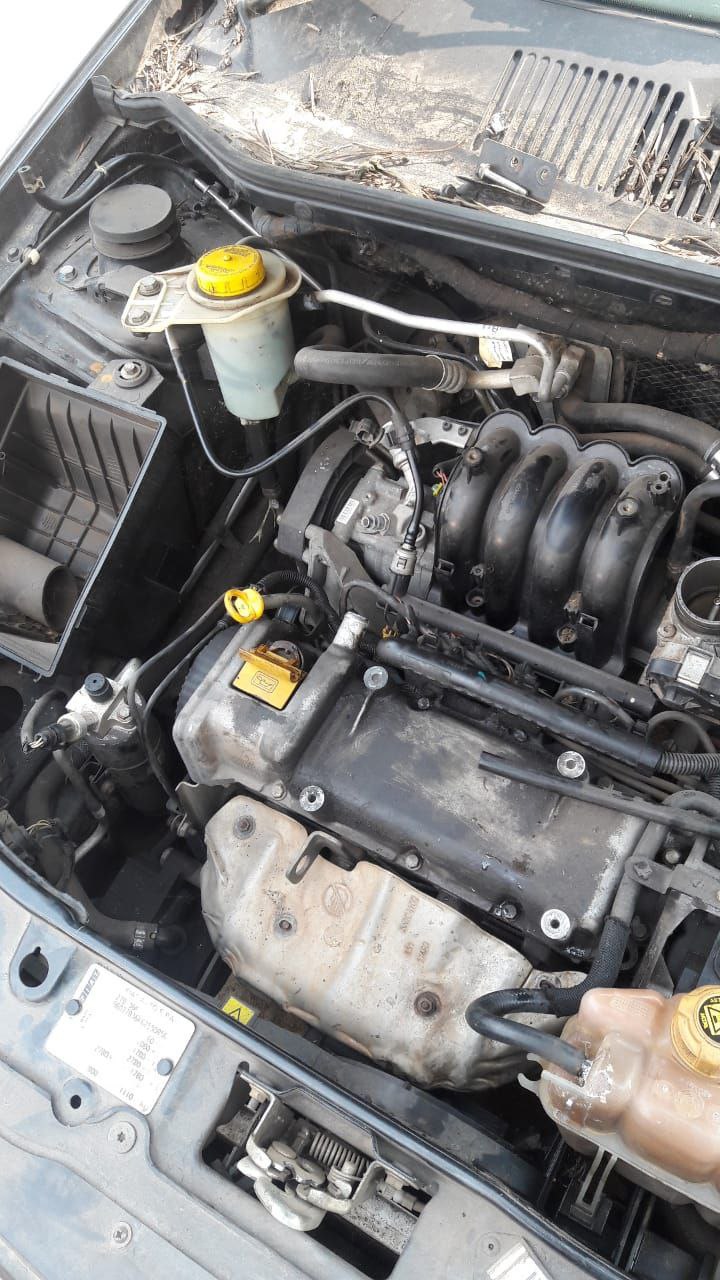

Hi, a very neglected Strada with lots of things missing in engine bay it seems. Fuel system may be biggest issue. It is fuel injected 1.4 2005 model. Anybody can help with an engine bay picture to start off please?

The is a fuel return line (it appears to be) on the left top of engine bay and it just sits there open to the elements. Fuel supply line goes to injector fuel rail.

Does this system have a return line and from where does this return fuel?
Any help appreciated, or a page from a manual or picture will be helpful.



[Spwrsa]

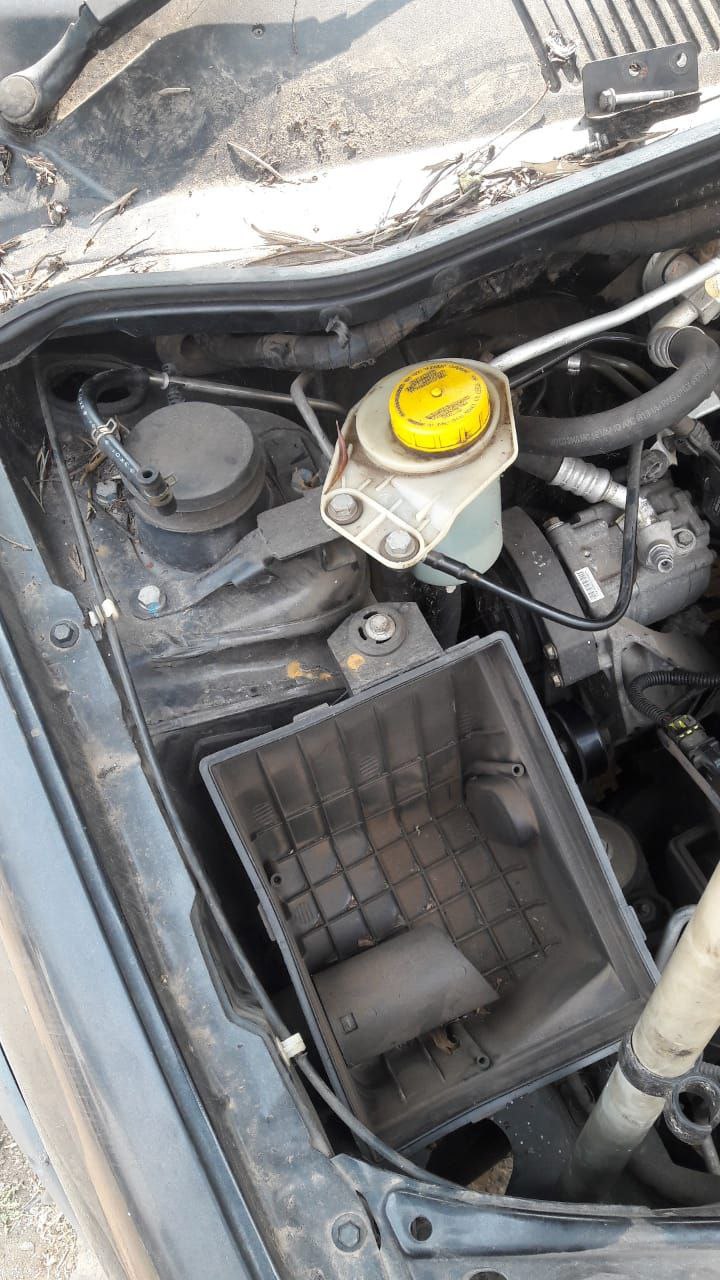

Fuel line open top left

Any idea if this belongs here?



[Spwrsa]

Anybody with any ideas?



[jackwhoo]

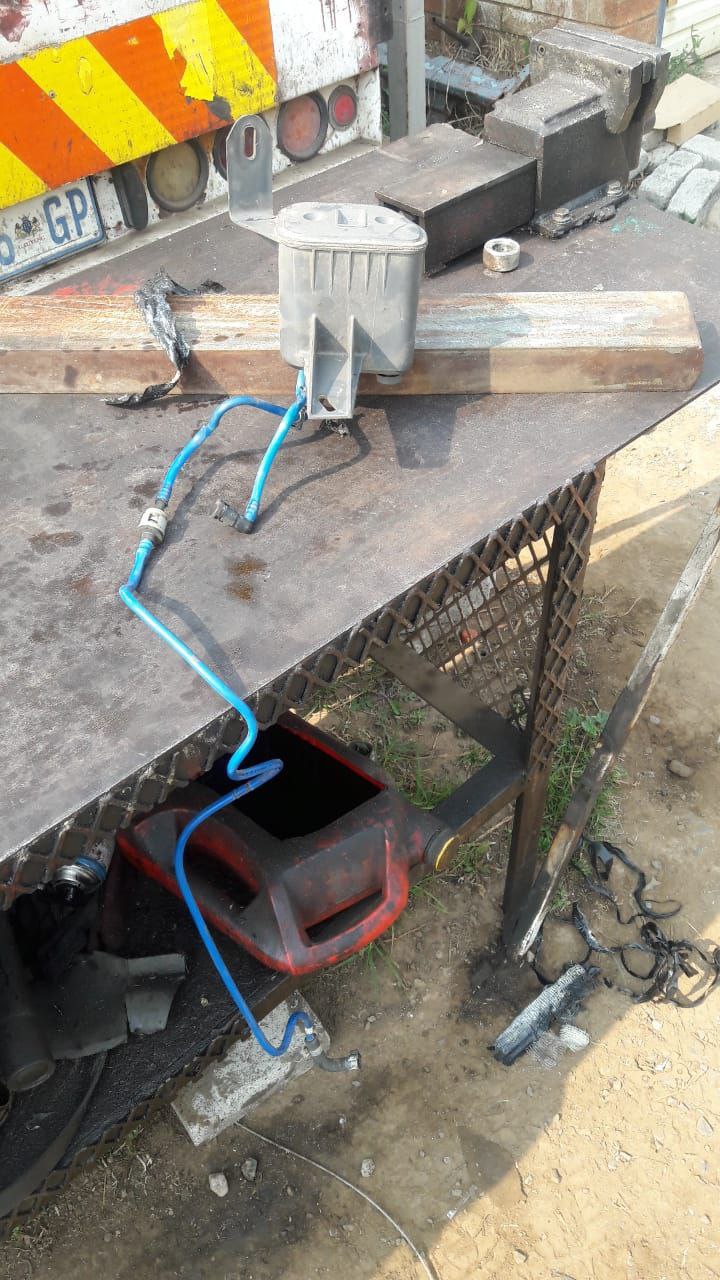

Blue pipes are most often too / from evap carbon canister.



[Spwrsa]

Blue pipes are most often too / from evap carbon canister.

I am assuming that to be the evap cannister, where do those blue pipes connect to on the engine tho?



[jackwhoo]

We didn't get strada in uk

But blue pipe should connect to inlet manifold somewhere and there will be an evap solenoid valve , possibly in inlet manifold.

You have have to find another Strada to look at.



[Spwrsa]

Finding one is not really an option, hence asking here. The sedans of same vinage should be the same.
